AC Infinity Air Filtration Kit 6", Inline Fan with Speed Controller, Carbon Filter & Ducting Combo

AC Infinity Air Filtration Kit 6", Inline Fan with Speed Controller, Carbon Filter & Ducting Combo

$219.99 USD
$0.00 USD $219.99 USD
Sale Sold out
Description

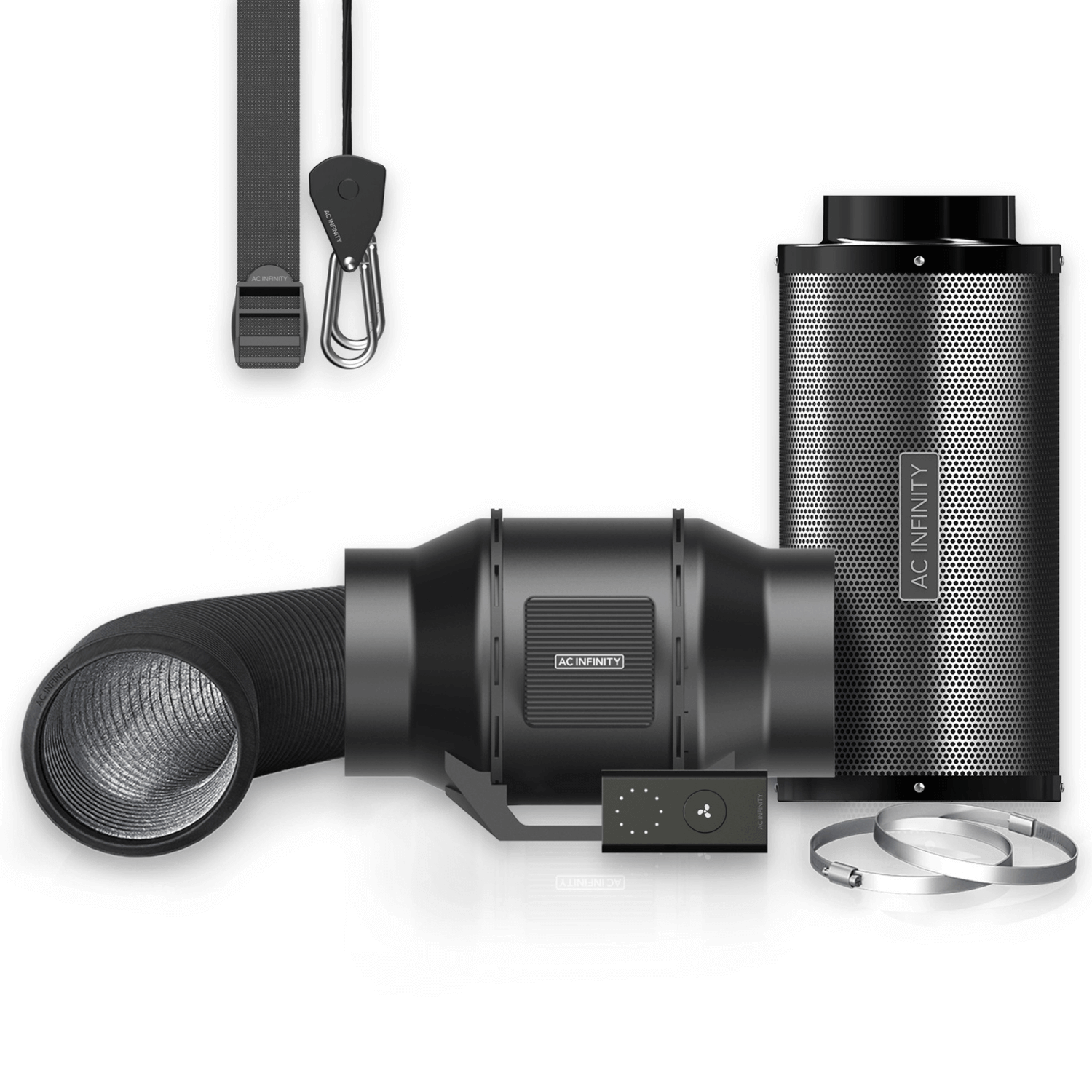

  • All-Inclusive Air Filtration Kit: This kit is equipped with all the necessary items required for cooling, ventilating, and controlling odors in your grow space. It includes the CLOUDLINE inline fan with speed controller, a carbon filter with a prefilter cloth, and four-layered flexible ducting to connect the fan and filter to your tent to control and direct airflow efficiently.

  • Specifications: The duct size of the kit is 6”. The fan has an airflow capacity of 352 CFM and operates at a noise level of 34 dBA. The carbon layer is 38mm thick and the ducting has a length of 25 ft.

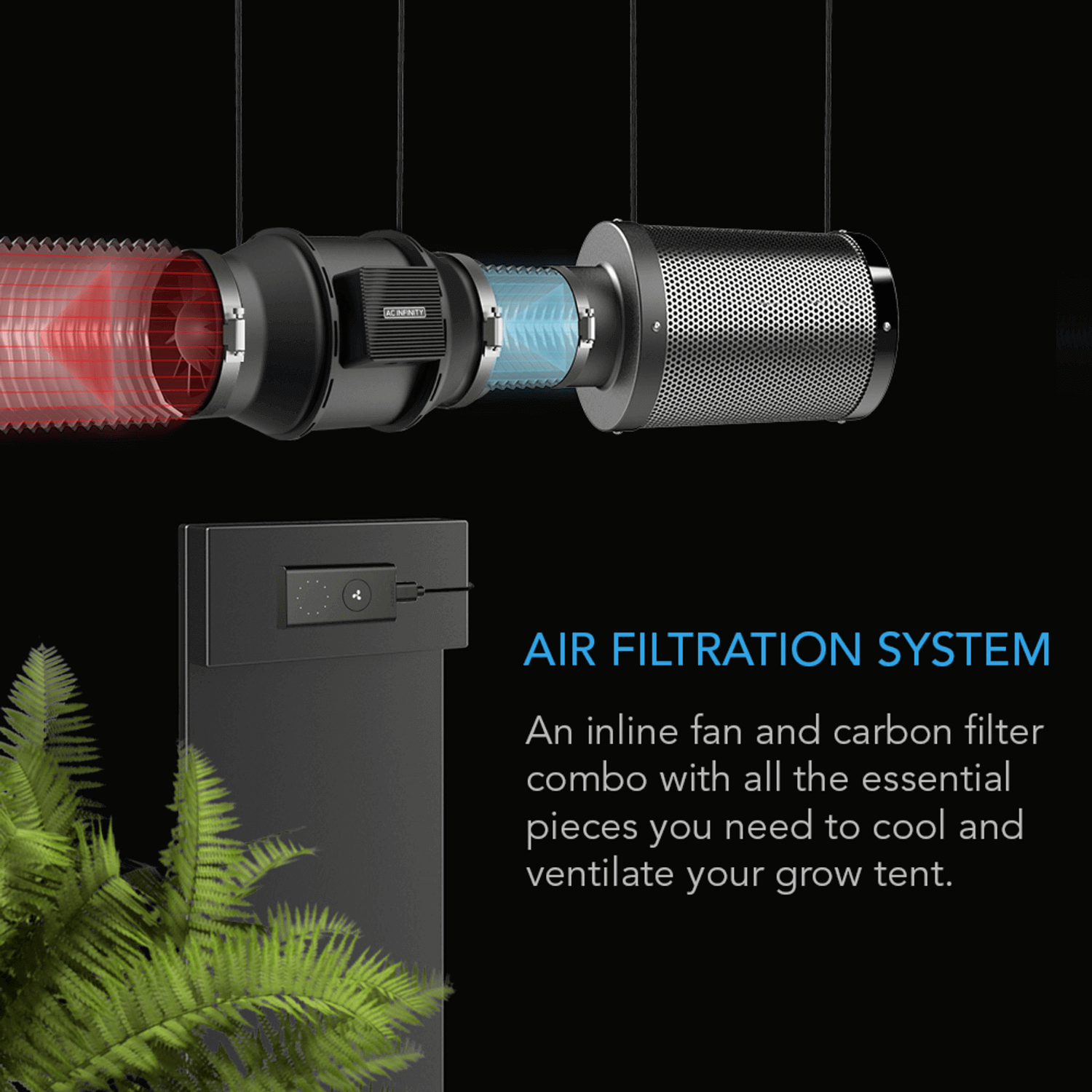

  • Product Description: This grow tent air filtration system provides all the essential inline components required for effective ventilation of your grow space. By combining these pieces, the package aims to simplify your grow build process by eliminating the guesswork of buying them separately.

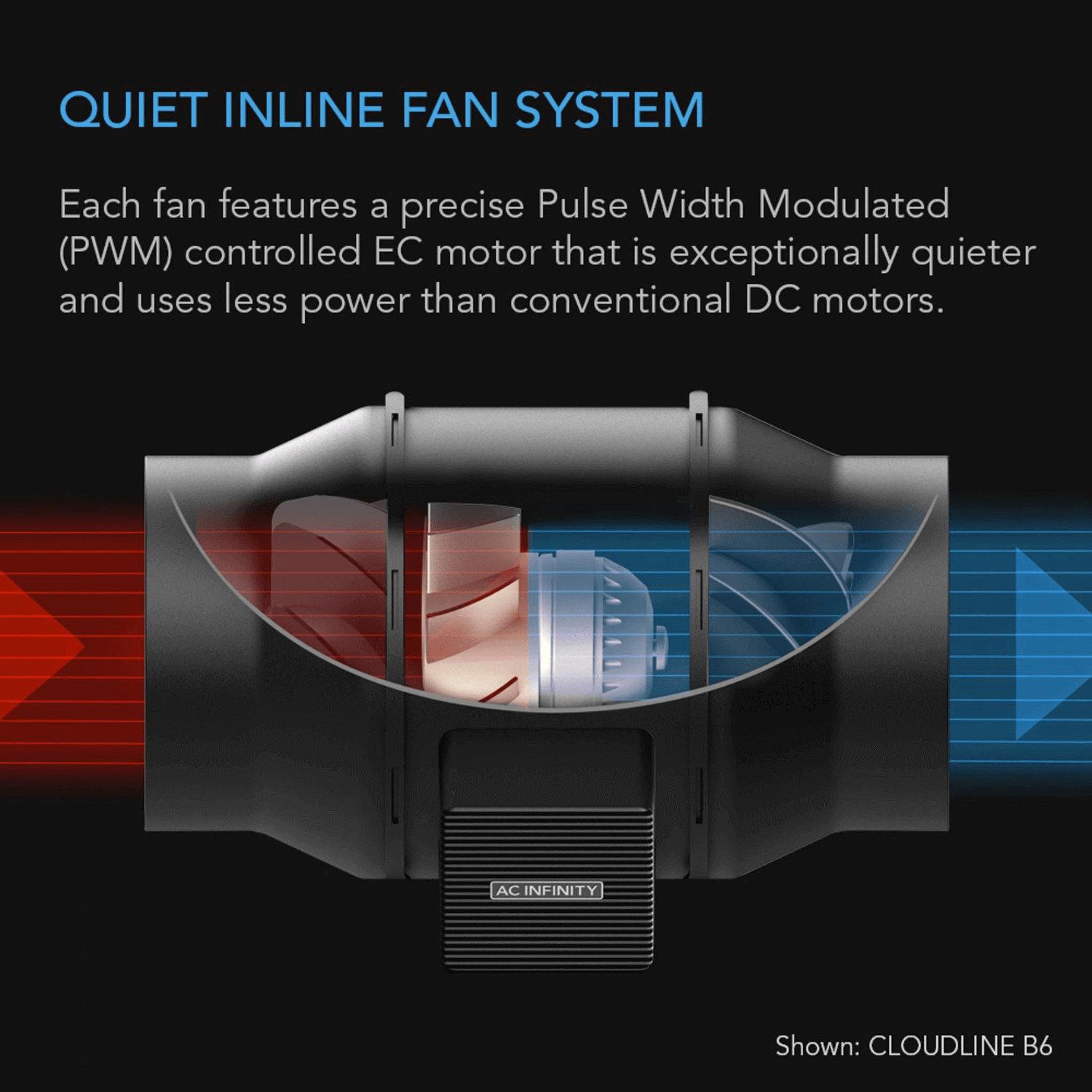

  • High-Performance Inline Fan: The kit features the CLOUDLINE series fan with a 10-speed controller. This fan is known for delivering powerful yet quiet performance. It incorporates stator blades and dual hydrodynamic wind circles which result in high-performance airflow in highly restrictive applications. The fan's impeller and blades can be easily detached for maintenance.

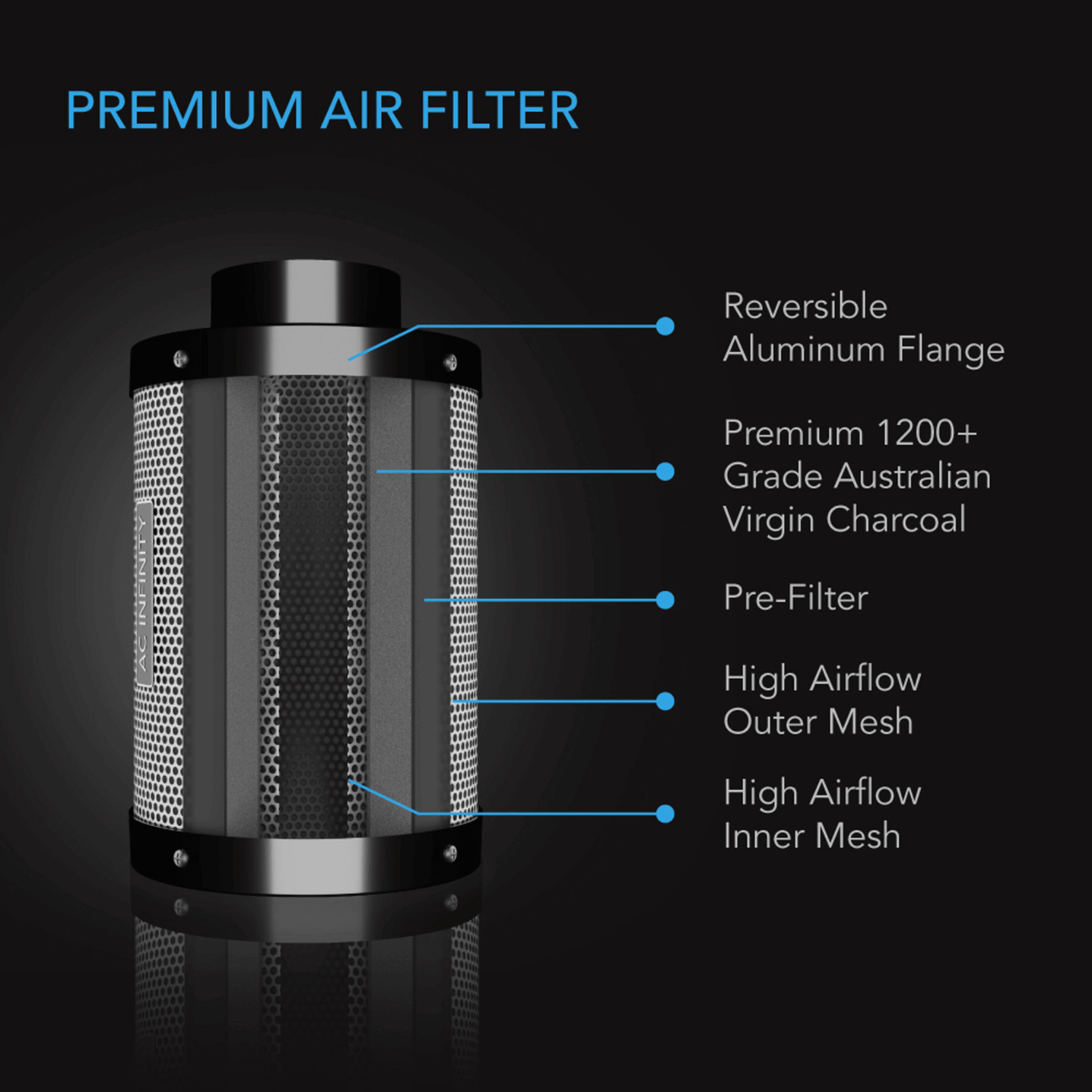

  • Efficient Carbon Filter: Paired with the fan is a carbon filter using premium Australian virgin charcoal to effectively block odors from escaping your grow tent. Its thick carbon bed is capable of absorbing even the most potent odor molecules, ensuring up to 33% longer efficiency than other inline filters.

  • Safe and Durable Ducting: This flexible ducting included in the kit connects the inline fan and carbon filter with your grow tent and helps to direct stale and odorous air away. It is designed with four layers of protection against tears and leaks and is bound by internal steel wires to retain its shape. It resists wear and tear due to warmer airflow and allows you to customize the length of your ductwork as per your needs.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: Air Filtration Kit 6"
  • Product Model: AC-FKS6
  • UPC Code: 819137021891

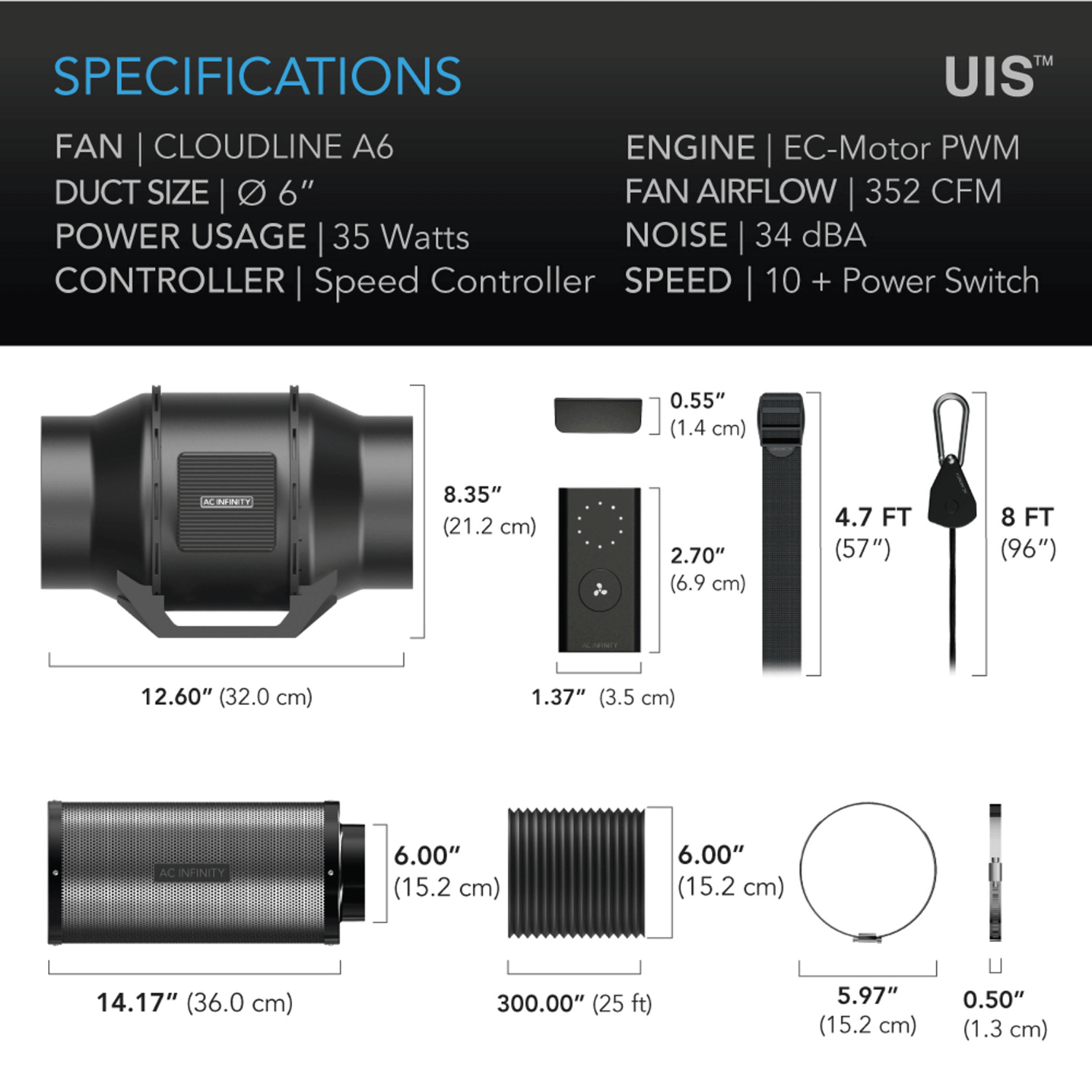

  • Product and Mounting Dimensions - Fan Unit
  • Duct Size: 6 inches
  • Total Dimensions: 7.87 x 12.60 x 8.35 in.
  • Mounting Hole-To-Hole Distance: 3.15 x 2.36 in.
  • Screw Hole Size: Ø 0.236 in.
  • Cord Length to Controller: 72 in. (6 feet)
  • Cord Length to Plug: 72 in. (6 feet)

  • Product and Mounting Dimensions - Controller
  • Total Dimensions: 2.70 x 1.37 x 0.55 in.

  • Product Performance and Technical Specs - Fan Unit
  • Total Airflow (Fan Only): 352 CFM
  • Total Noise: 34 dBA
  • Static Pressure: 394 Pa
  • Voltage: 100-240V AC
  • Frequency: 50/60Hz
  • Max Power Draw: 65 W
  • Average Power Usage: 35 W
  • Current: 0.95 A
  • Power Connector Type: US Plug (NEMA 1-15 Type-A)
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 0 to 140°F
  • Ingress Protection: IP 44
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
  • Fan Quality Approvals: CE, RoHS

  • Product and Mounting Dimensions - Carbon Filter
  • Duct Opening Size: 6 inches
  • Total Dimensions: 15.94 x 8.93 in.
  • Flange Length: 1.57 in.

  • Product Performance and Technical Specs - Carbon Filter
  • Flange Material: Aluminum
  • Flange Design: Reversible
  • Mesh Material: Galvanized Steel
  • Carbon Type: Australian Virgin RC412
  • Carbon Grade: 1200+ IAV
  • Carbon Thickness: 38mm
  • Maximum Airflow: 410 CFM

  • Product Dimensions - Ducting
  • Ducting Size: 6 in.
  • Length: 300 in. (25 ft)

  • Product Performance and Technical Specs - Ducting
  • Outer Layer: PVC Thermoplastic
  • Inner Material: Aluminum Foil
  • Internal Structure: Spiral Steel-Wire
    • Data Sheet
  • Download the Product Manual: here
  • Download the CE Certification: here
  • Download the RoHS Certification: here
